Wireless Camera and 7″ Monitor Set – Hazard Warning Using Artificial Intelligence

Wireless HD Camera and Monitor Set with Built-in Artificial Intelligence (AI) for Detecting People and Vehicles in a Defined Area.

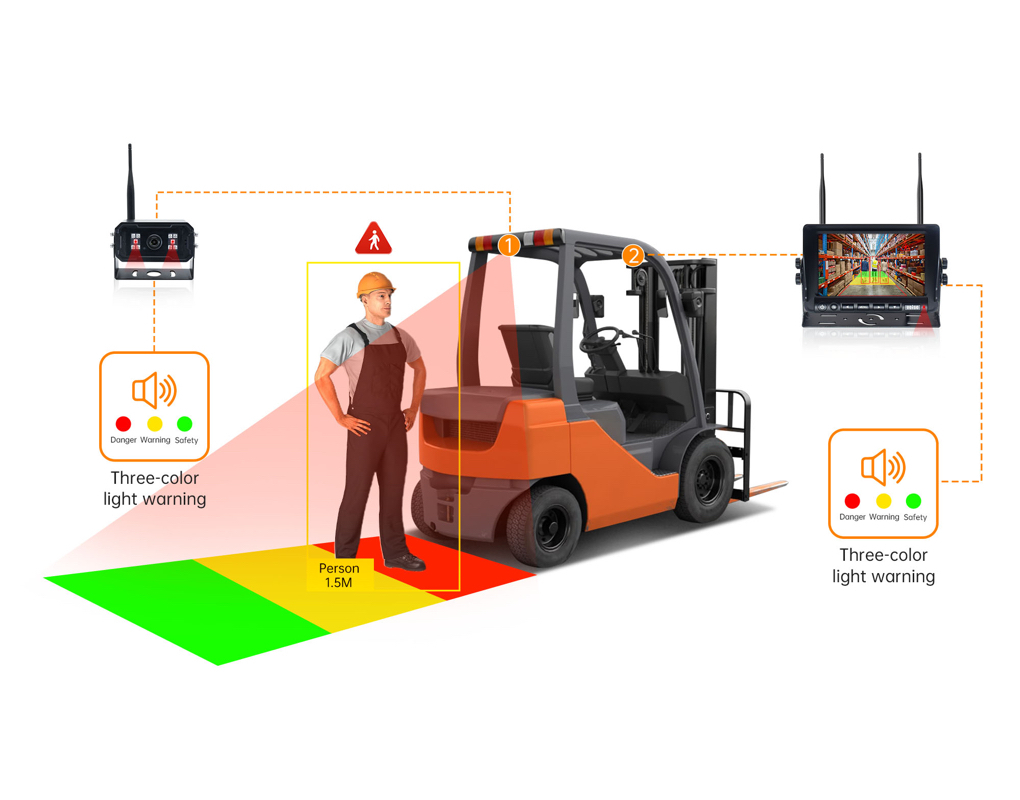

The camera is mounted on the rear or side of the vehicle. With an adjustable detection area for people and vehicles, both the camera and the monitor provide visual and audible alerts when a person or vehicle enters a danger zone that is divided into three zones (green, yellow, red). The connection between the camera and the monitor is wireless, and both are powered via a DC power supply of 10–32V.

This solution enhances safety in work environments and is especially suitable for all types of vehicles where there is a risk of a person entering a hazardous area without being noticed by the driver. With audible and visual alerts built into both the monitor and the camera, both individuals are warned: the person who enters the danger zone and the vehicle operator.

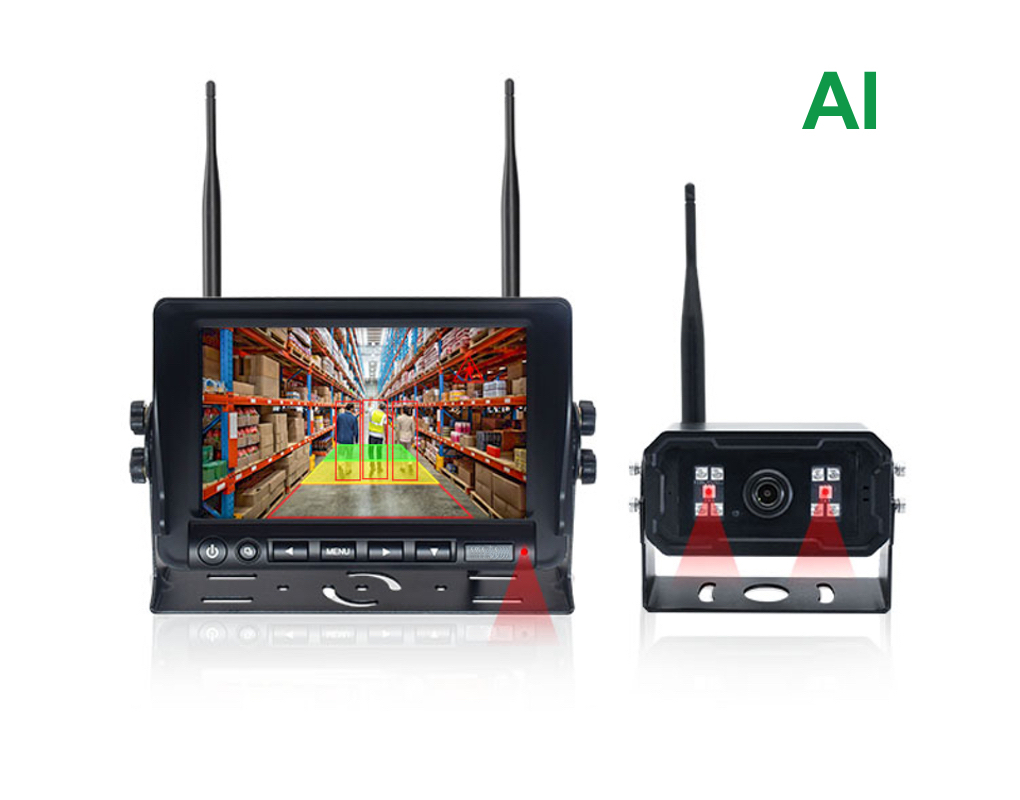

The Set Includes:

7” TFT 1024×600 LCD Monitor with AI
– voltage: 10–32V DC
– luminance: 600 Cd/m²
– number of cameras: up to 4
– image display: adjustable trapezoid to aid distance determination
– operation: buttons and on-screen menu
– AI function: built-in artificial intelligence for detecting people and vehicles (adjustable detection area)
– alerts: built-in buzzer and 1x LED (green, yellow, red) based on zone
– antenna: 2.4GHz receiver, dual antenna, range up to 200m in open space
– recording (DVR): SD card up to 512GB
– operating temperature: -20°C to +70°C
– dimensions: 216x150x54 mm

Wireless Camera with AI
– sensor: 1/2.9″ Color CMOS, 1920×1080
– antenna: 2.4GHz transmitter, range up to 200m in open space
– field of view: 100°
– AI function: detection of people and vehicles
– alerts: built-in buzzer and 2x LED (green, yellow, red) based on zone
– ingress protection (IP rating): IP69K
– housing: aluminum
– operating temperature: -20°C to +60°C
– voltage: 10–32V DC
– dimensions: 74x64x56 mm
