Lightbar LED 10-30V amber with stop/tail/direction indicator – 1149mm
PRODUCT CODE: ELB504504
Files:

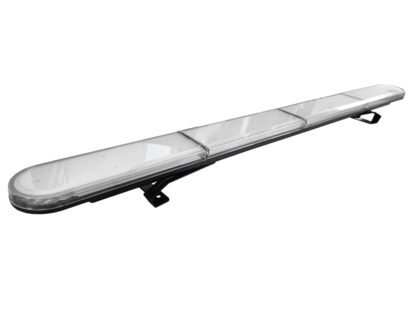

LED Lightbar with amber LEDs and stop/tail/direction indicator, operates at 10 to 30V. The lightbar is 1149mm long, 305mm wide and is ECE R65/EMC R10 approved. It connects via 500mm long cable.
– Voltage: 10-30V
– Power: 127W
– Functions: warning lamp (10 flashing patterns)
direction indicator (left / right)
tail/stop
– Dimensions: length 1149mm, width 305mm, height 78mm
– Lens color: transparent
– Ingress protection (IP rating): IP67
– Warranty: 3 years
– Approvals: ECE R65, EMC R10
– Installation: flat mount with 4 bolts
– Connection: 500mm cable
