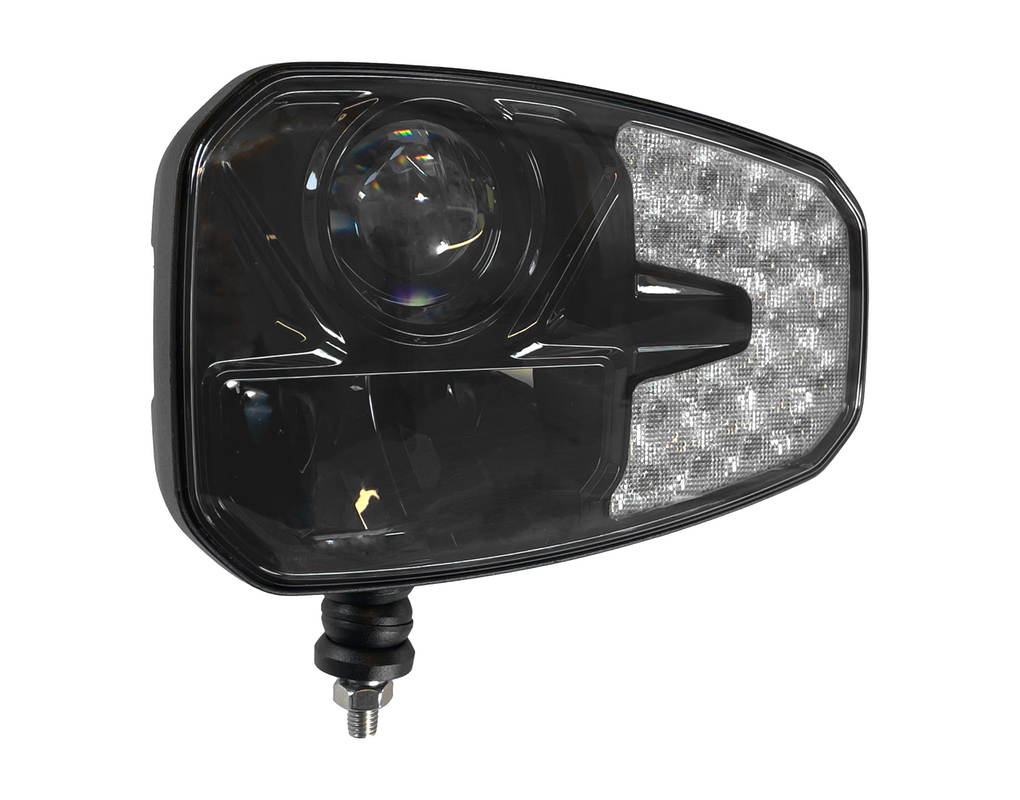

Headlamp LED with direction indicator and position 240x150mm LEFT
PRODUCT CODE: EHL584540L
LED headlamp with position and direction indicator, operates at 9-32V. It mounts on the left front end of the vehicle. The mounting point can be on the back or bottom of headlamp.
– voltage: 9-32V
– functions: low beam/high beam, position, direction indicator
– power: low beam – 24W, high beam – 65W, position – 12W, direction indicator – 16W
– approval: ECE R148, R149 / ECE R10
– Installation: screw (two mounting points)
– ingress protection (IP rating): IP67
– connection: connector Deutsch
